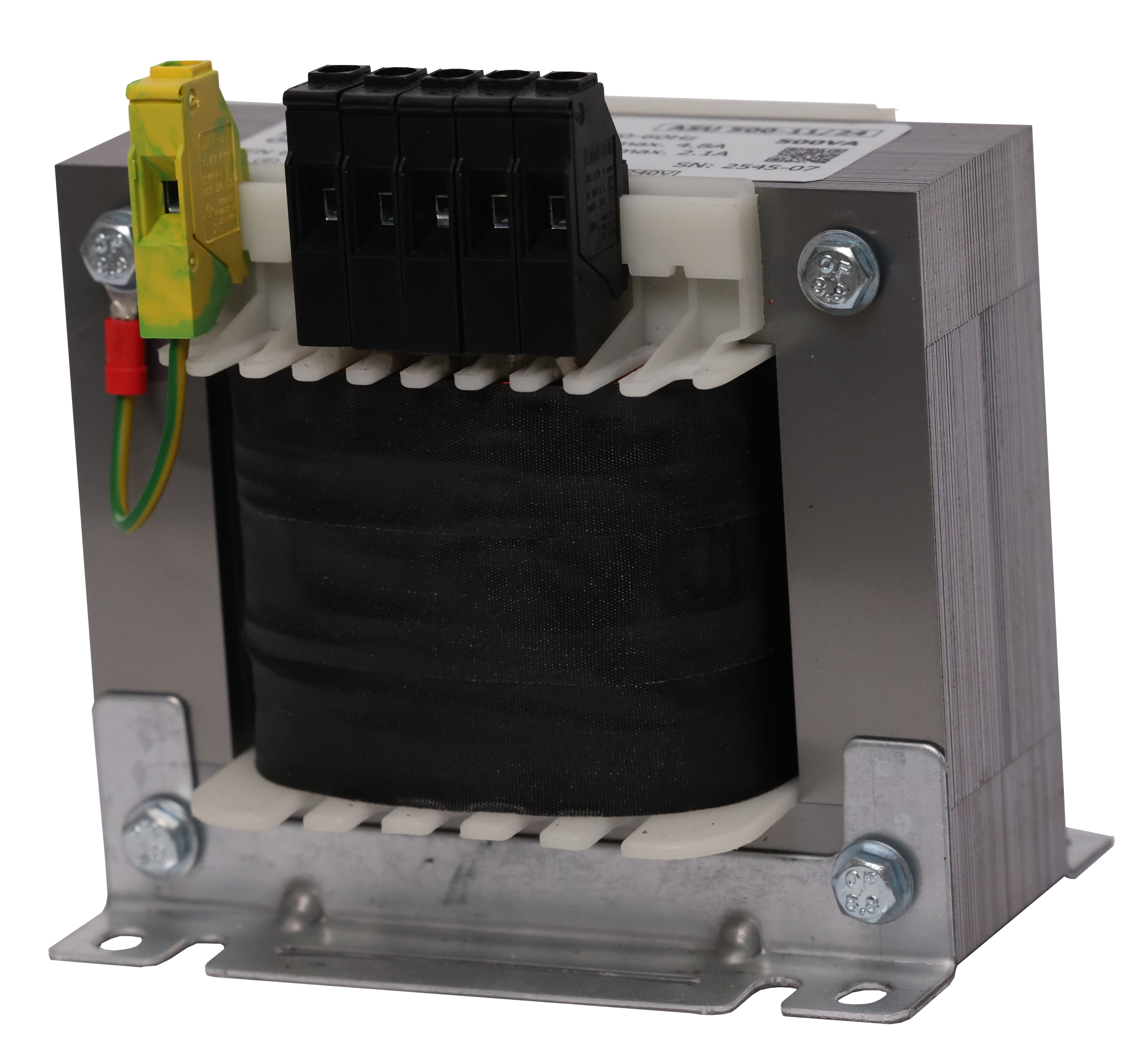

ASU 500-11/24

Autotransformer in accordance with EN (IEC) 61558-2-13
High reliability and long service life
Low losses and high efficiency
Significantly lower weight and more compact dimensions compared to other transformer types with galvanic isolation

Description

Category	Single-phase autoransformer
Item number	ASU 500-11/24
Series	ASU
Rated power	500 VA
Input	110 V / 125 V / 230 V / 240 V
Output	110 V / 125 V / 230 V / 240 V
Rated frequency	50–60 Hz
Short-circuit losses	19.9 W
No-load losses	7.4 W
Short-circuit voltage (uk)	7.2 %
Insulation class	F (155°C)
Duty cycle (ED)	100 %
Efficiency	90.4 %
Ambient temperature	40°C
Ambient temperature	I0
Protection class	I
